To add a new floorplan to lockchart users click on Floorplan icon available in Top Bar.
New window is displayed on the right side of the screen.

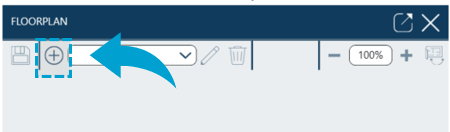

To add a new floorplan users click on the PLUS icon.

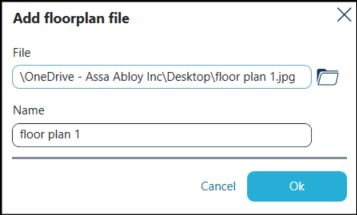

Pop-up window appears where users select a file to upload to Key Studio.
Available file formats are .pdf, .bmp, .jpg, .png.

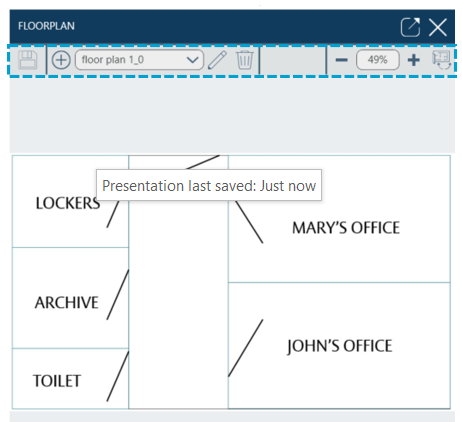

Once the lockchart has been uploaded it is rendered in floorplan pane.
Buttons on the top of the window become active enabling users to save changes, add another floorplan, modify uploaded file, remove it, rescale or rotate it.
Clicking on the Save icon saves current progress and all added floorplans to the lockchart.
