Key Studio™ offers users more advanced options of leveraging Groups & Sets functionality.
GROUPS - Using groups, means that lockchart can contain logical groups of cylinders, optionally wit ha central cylinder and / or a master key inside the group.
SETS - Using sets, means that the users are allowed to organize multiple cylinders which need to have the same functionality.

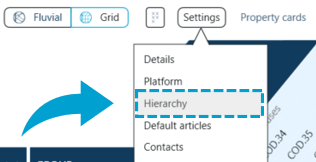

To enable those functionalities users navigate to Organizational hierarchy of the lockchart - either while setting up the lockchart using wizard steps or accessing from lockchart screen - Settings -> Hierarchy.

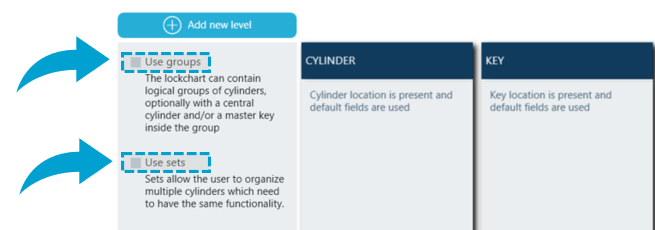

To enable groups and sets users select appropriate options as displayed below.

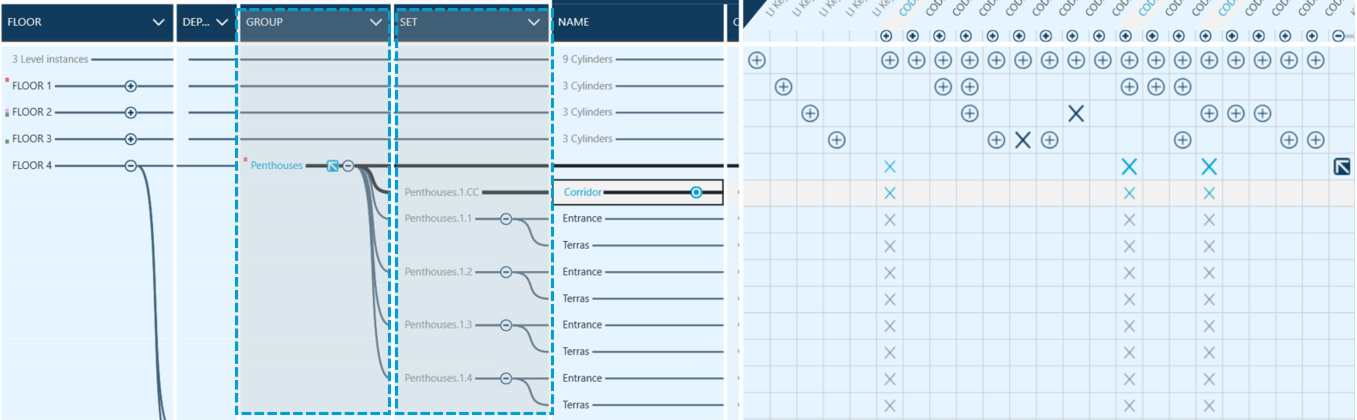

Once the options have been enabled additional columns are displayed for cylinders.

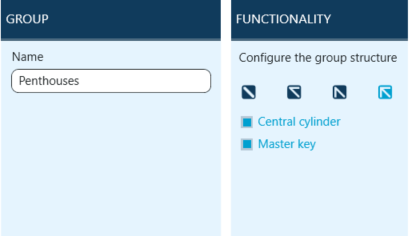

Groups of cylinders have their own Inspection Panel setup options.
Each group may have a separate Name and Functionality configuration.
To help display group functionality on the lockchart additional icons are added to the lockchart and are explained in group's configuration panel.
no central cylinder, no master key
central cylinder, no master key
no central cylinder, master key
central cylinder, master key

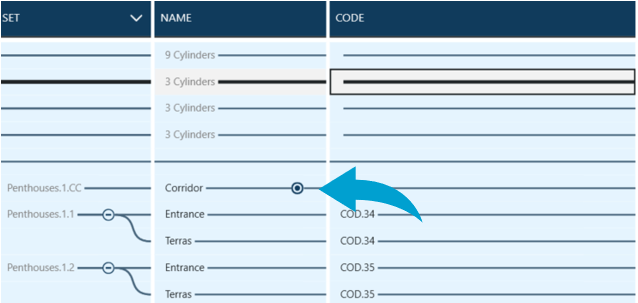

Central cylinders also have additional icon added to their name to highlight their location.
